A-frame
An A-frame is a simple structure which resembles the capital letter A, where two lengths lie at an angle meeting at the top and a central brace ties them together. Where self standing the frame may have three angle lengths meeting at the top, so the sides form a triangular pyramid or tetrahedron with equilateral triangles on each side, or four length forming a pyramid, with a tie between each.

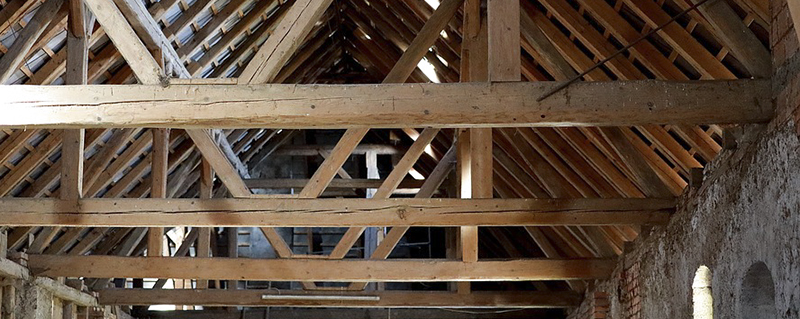

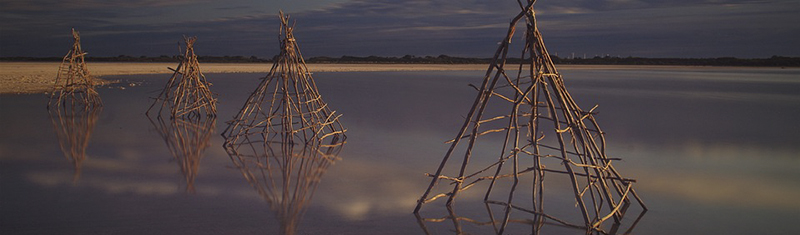

The structure can be seen at many different scales, including early tipi or tent shaped shelters covered in hides, structures over wells, or simple sawhorses with two A-frames with rigid connections to a horizontal beam. Most modern day timber roof structures have a tie beam and two rafters that form an A-frame which is tied to other A-frames via a ridge beam and purlins forming the roof structure.

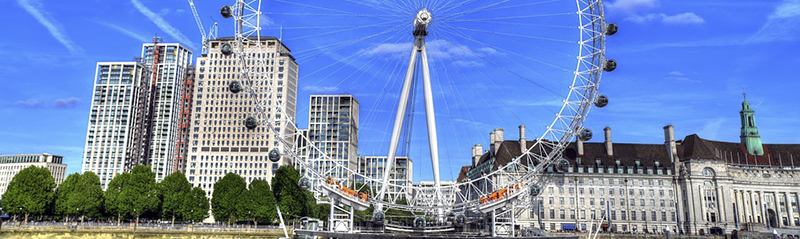

At a larger scale, the Eifell tower although with curved angle lengths to resist wind loads, represents in its simplest for an A-frame, whilst the more contemporary London eye is supported by a single frame base, with a series of wires acting as the ties.
A similar structure might be referred to in English as a trestle, which in its simplest form is a similar framework consisting of a horizontal beam supported by two pairs of sloping legs, used to support a flat surface such as a table top. In the case of trestle tables the two pairs of sloping legs may make up a flat frame joined together at the top, often with a hinge and with a tie at the bottom stoping the supports from spreading and collapsing, in combination this makes up an A frame.
